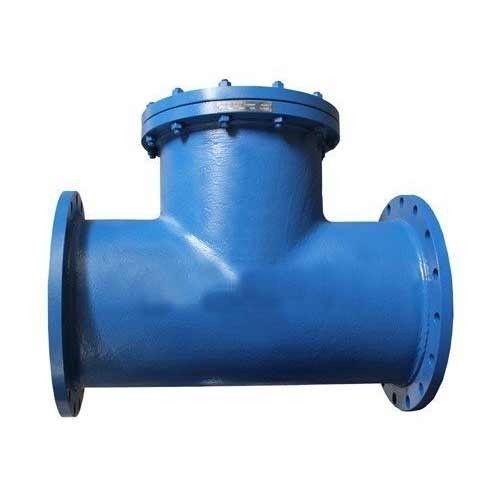

Ansi Flanged Fabricated Straight T Type Strainer DN1200 48inch 150LB
Specification:
1. Strainer: Large Diameter WPB Fabricated Industrial T Type Strainer
2. Sizes: Dn1200 (48inch) or larger sizes available
3. Pressure rating: 150LB / PN16
4. Suitable medium: Water, gas, oil, steam etc
5. Body material: Carbon Steel A234 WPB, A106
6. Screen: Stainless steel (304SS, 316SS)
7. Perforated Hole Size: 3mm (1/8")
8. End connection: RF, Raised Face
9. Body Type: Straight, Welded / Fabricated
10. Cover Type: Bolted Cover / BC
T Type Strainer Standards
Design and Manufacture: ASME B16.34
Inspection and Test: API 598
Flange end dimension: ASME B16.5, ASME B16.47 A/B, EN1092-1
BW end dimension: ASME B16.25
Face to face and end to end: ASME B16.10
Pressure-temperature ratings: ASME B16.34

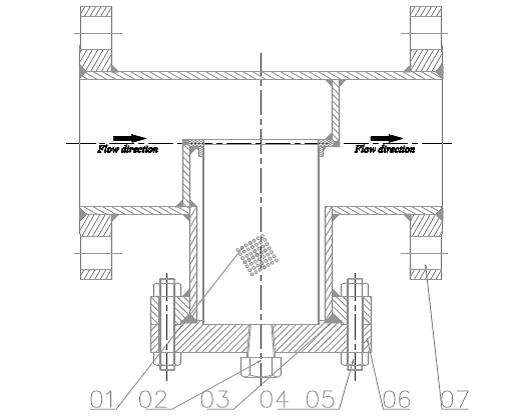

Main Part and Material List
No. | Parts Name | Material |
1 | Screen | SS316 |
2 | Drain Plug | ASTM A105 |
3 | Gasket | Graphite+SS304 |
4 | Cover Nut | ASTM A194 2H |
5 | Cover Bolt | ASTM A193 B7 |
6 | Cover | ASTM A105 |
7 | Body | A106+A105 |

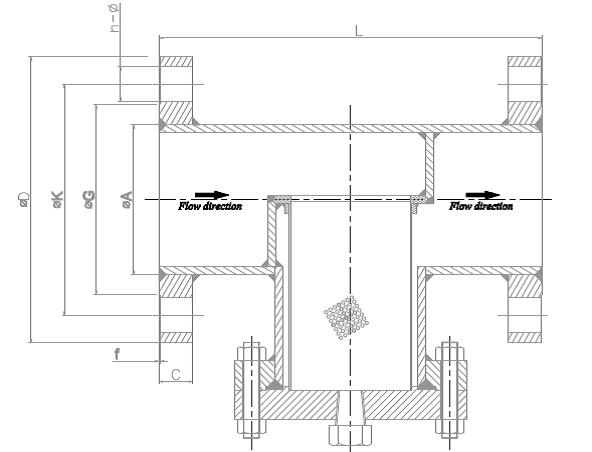

Main Dimensions for 48inch 150LB T Type Strainer
CLASS 150 | ||||||||
Size | L | A | G | f | K | D | C | n-Φ |
48in | 1950 | 1200 | 1290 | 1.6 | 1335 | 1392 | 65 | 44-32.5 |
