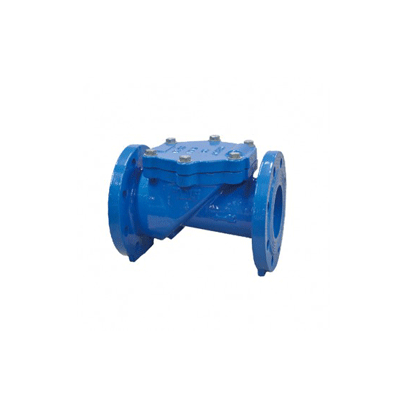

Swing Check Valve Rubber Seated
Swing Check Valve Rubber Seated
Size: DN 50~DN 800
Pressure:PN10/PN16
Face to face: EN558-1
Flange connection: EN1092 PN10/16
HRSO Rubber seated swing check valve is simple, durable and exhibits improved design features over that of traditional metal-seated swing check valves. The disc and shaft are fully encapsulated with EPDM rubber to create the valve’s only moving part
| Nominal pressure | PN10 | PN16 | |
| Test pressure | Shell | 1.5 Mpa | 2.4 Mpa |
| Sealing | 1.1 Mpa | 1.76 Mpa | |
Specification Data:
DN | DN50~800 |
Class | PN10, 16 |
Working Temperature | ‘-40℃~+120℃ |
Flange drilling standard | DIN 2532-2533/BS EN 1092 |
Surface Treatment | Akzo Nobel Fusion Bonded Epoxy |
Application | Portable Water, Water Distribution Service &Feed Lines, Sewage Disposol, Irrigation.etc. |
