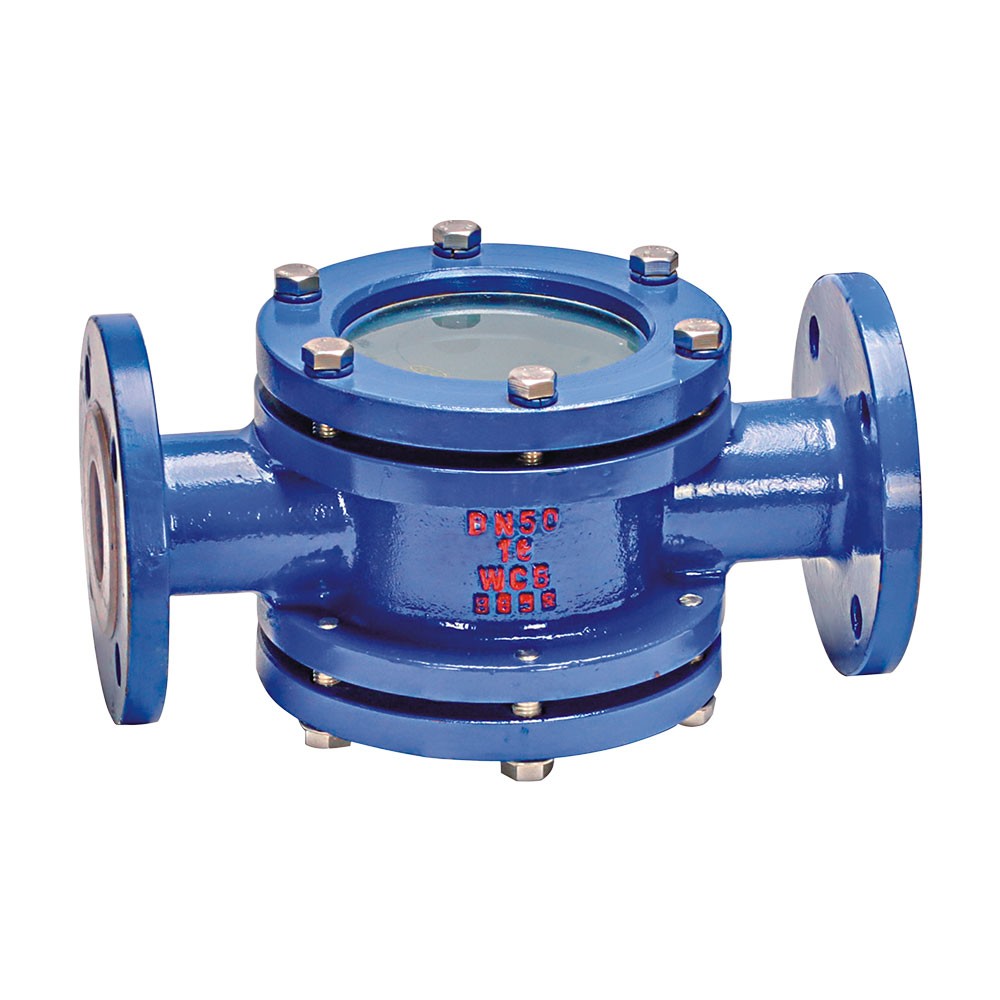

PTFE Lined Sight Glass Valve
PTFE Lined Sight Glass Valve
Size: DN15-DN200
1/2''-8''
Lined Sight Glass Valve
The sight glass valve is widely used in the pipelines of industrial production equipment such as petroleum, chemical industry, medicine, food, etc. It can observe the flow of liquid, gas, steam lubricating oil and other media in the pipeline at any time, which plays a role in monitoring production and avoiding accidents in the production process. An indispensable accessory for plumbing installations.
Technical Standard | |
Flange Standard | GB/T9113.1-2000 or ASME16.5 a |
Nominal Pressure | 0.6、1.0、1.6、2.5Mpa / Class150 |
Appliable Pressure | PN<2.5Mpa, Working Pressure<1.0Mpa Working temperature depends on lining material |
Main Parts materials
Part Name | Stainless Steel | ||||
C | P | R | PL | RL | |
Body | WCB | CF8 | CF8M | CF3 | CF3M |
Glass | Silica glass, tempered glass, quartz glass | ||||
Lining | FEP(F46)、PTFE(F4)、PFA、PO、PE | ||||
Gasket | PTFE（Teflon） | ||||
Bolt | 35 | 1Cr17Ni2 | 1Cr17Ni2 | 1Cr18Ni9 | 1Cr18Ni9 |
Nut | 45 | 0Cr18Ni9 | 0Cr18Ni9 | 0Cr18Ni9 | 0Cr18Ni9 |
Please contact sales@hrsovalve.com for more information.
