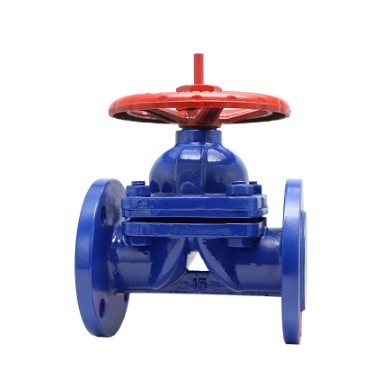

PFA-lined diaphragm valve

This product uses a special process to coat the valve body with PFA/FEP, and the diaphragm parts use PFA/FEP and EPDM, so that the various parts of the valve cavity can achieve the same corrosion performance. The product has good throttling characteristics, corrosion resistance and granular media properties, reliable sealing performance, and can be widely used in various corrosive fluids and fibrous and powdery media.



Size:DN15~250

Features:The diaphragm separates the inner cavity of the lower valve body from the inner cavity of the upper valve cover, so that the valve stem, valve disc and other parts above the diaphragm are not corroded by the medium, the packing sealing structure is omitted, and the medium leakage will not occur.

           Technical Standard

Design

GB/T12235

Face to face dimension

HG/T3704-2003 GB12221ASME B16.10

Flange dimension

Gb/T9113.1   ANSI B16.5a

Structure Type

Wire Type, Straight Type

Drive

Manual, Pneumatic, Electric

Nominal Pressure

0.6、1.0、1.6、2.5

Test and inspection

GB/T13927-92API598



                  Model List

Manual

G41F4(Wire Type)

Pneumatic

G641G4 (Back and forth)

G41F46(Wire Type)

G641F46 (Back and forth)

G45F4 (Straight Type)

G6B45F4 (NC)

Electric

G45F46 (Straight Type)

Electric

G6B45F46(NC)

G9B41F4(Explosion-proof)

G945F4(Common)

G9B41F46(Explosion-proof)

G945F46(Common)



Main Materials List

Part Name

Ductiron Iron

Carbon Steel

Stainless Steel

QT

C

   P

   R

 PL

   RL

Body/Bonnect/Disc

QT400

WCB

 CF8

CF8M

CF3

CF3M

Stem

   2Cr13

2Cr13

CF8

CF8M

CF3

CF3M

Line

FEP(F46)、PTFE(F4)、PFA、PO、PE

Diaphragm

                   ZcuA110Fe3

Stem Nut

FEP(F46)、CR、PFA、FPDM

Bolt

   35

 35

1Cr17Ni2

1Cr17Ni2

1Cr18Ni9

1Cr18Ni9

Nut

   45

 45

0Cr18Ni9

0Cr18Ni9

0Cr18Ni9

0Cr18Ni9

Handwheel

                          A3


For more information, please contact sales@hrsovalve.com
